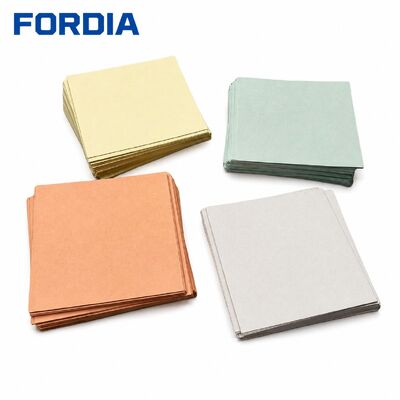

Offset Printing Machine Underpacking Paper High Precision Calibrated Packing Sheet

Material Customization: Choose from various weights for optimal underpacking performance.

European Quality: Made in Germany, ensuring durability and precision.

Versatile Sizes: Available in multiple dimensions for diverse printing needs.

FORDIA Brand: Trusted by professionals for reliable underpacking solutions.

The original quality

• Special method (Calibration) eliminates irregularities.
• All papers are absolutely uniform in hardness and thickness.
• Filled ISO standards for calibrated materials.
• Falls below the required tolerances of ±0.01 mm/m².

• Patented color scheme by the inventor.
• 7 different thicknesses (0.10 mm - 0.50 mm) for optimal pressure.
• Color scheme facilitates the printing machine setting.
• Color scheme prevents production faults.

• Anti-slip coating for optimal result.
• Prevents slipping of the underpacking sheets.
• No thrust in the machine.
• No twisting in the machine.

• Through and through impregnation.
• Prevents moisture penetration.
• Prevents undesired tendency to bunching up.

• High paper hardness through calibrated method.
• Compressive strength 60t/cm².
• Prevents thrusting.
• Prevents twisting.
• Prevents high dot gains.

• More than 40 years’ experience.
• Patented manufacturing methods.
• Original quality from the Inventor.
• Worldwide Number One.

Grain-coloured 0.10 mm | Brown 0.15 mm | Green 0.20 mm | Golden 0.25 mm | Lemon-coloured 0.30 mm | Blue 0.40 mm | Grey 0.50 mm

For an optimum printing result in Offset and other printing processes, the correct even pressure of the printing cylinders over the entire area is the decisive factor. Irregularities can lead to problems such as striping, cloudy spots, thrusting, folding, fluctuating dot gain and other issues. Underpacking sheets having different thicknesses ensure the proper pressure is applied. The accurate and uniform property of the papers as far as possible with regard to density, surface and thickness is important.

No willingness to compromise in the precision: FORDIA underpacking sheets are manufactured in accordance with ISO Standards for calibrated materials. In this process irregularities are eliminated and the paper is compressed to a minimum of its volume. The required tolerances of ±0.01 mm/m² are easily achieved.

Only the original provides optimal results: For a smooth printing process underpacking sheets in different thicknesses are required. The thicknesses vary between 0.10 and 0.50 mm. FORDIA colour scheme with 7 different underpacking sheets enables operators to find the correct underpacking sheet without measuring tools.

In addition to precision and function, FORDIA underpacking sheets meet additional requirements for an optimal product: safe, reliable, faultless and unique. Anti-slip coating reduces slip, while special impregnation prevents bunching. Compressive strength prevents thrusting and twisting.

Thanks to over 40 years of manufacturing process improvements and support from customers worldwide, FORDIA is able to offer competitive prices through large-scale production.

Heidelberg

TOK 370x270; GTO 46 448x350; QM 46 485x340; PM/GTO 52 510x360; SM52/SX52 532x377; MO 650x530; SM74/SX74 750x550; SM72 730x595; CD74/XL75 750x620; SM102/SX102 1030x735; XL105/106 1054x765; CD102/CX102 1030x795; XL145 1460x1070; XL162 1630x1220.

KBA

Rapida 74/75 740x545; Rapida 104 1045x750; Rapida 105/106 1060x760; Rapida 130 1320x1080; Rapida 142 1440x1080; Rapida 162 1640x1240; Rapida 185 1870x1480; Rapida 205 2070x1540.

Manroland

R50 520x420; R200/300 740x605; R500 745x620; R700 1050x780; R800-4 1140x880; R800/900 1310x1000; R800-5 1280x1110; R800-5/Welt 1310x1110; R800-6 1450x1150; R800-7b 1620x1240; R900 XXL 1640x1240; R900 XXL-8 1860x1320.

Komori

Lithrone 28 760x660; Lithrone 40 1030x755.

All other sizes or thicknesses are available on request.

Available thicknesses

0.10 mm, 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.40 mm, 0.50 mm.

Roll length per roll

6650m, 4800m, 3600m, 2900m, 2400m, 1800m, 1450m.

Outer diameter

approximately 92-96 cm.

Width range

73.5 cm to 165 cm.

Standard roll length

200m.

All other sizes or thicknesses are available on request.

Guangzhou Fordia New Materials Technology Co., Ltd. specializes in high-performance printing consumables, offering offset, UV printing solutions and supplying offset printing machine parts. With a focus on quality and cost-effectiveness, the company serves global printing houses, providing stable products and customized solutions. It exports to Southeast Asia, the Middle East, and South America, emphasizing long-term partnerships and flexible MOQ.
