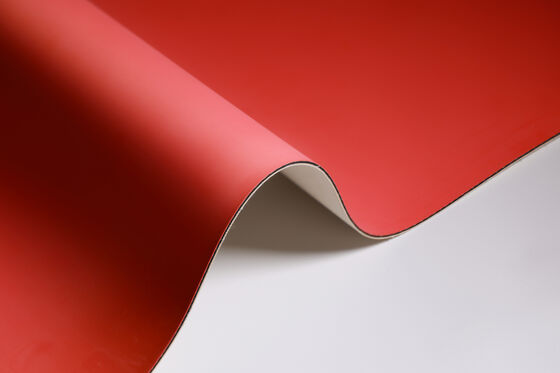

Ruby EPDM Offset Printing Rubber Blanket 3 Ply Medium Long Run
Ruby EPDM Rubber Blanket
,Offset Printing Rubber Blanket 3 Ply
,Offset Printing Blankets 3 Ply
|
PRODUCT TYPE Compressible UV blanket |
QUALITY GRADE Medium-Long Run |
FACE COMPOUND Ruby EPDM |
STANDARD GAUGE 1.95 ± 0.02 mm |
PRODUCT CATALOGUE & TECHNICAL DATA SHEET
Designed for sheet-fed UV offset printing, UV varnishing and selected metal-decorating applications.
Product Overview
FORDIA UV-20 is a medium-long run compressible printing blanket developed for sheet-fed UV offset production. Its ruby EPDM face compound is formulated for compatibility with UV-curable inks and varnishes, while the stable multi-layer carcass helps maintain uniform printing pressure and dimensional stability during extended production.
The precision-ground and buffed surface supports clean sheet release, fine dot reproduction and solid ink transfer. A resilient compressible layer provides a broad pressure latitude and useful recovery from minor impact, helping printers balance print quality, durability and operating cost in packaging, commercial and metal-decorating work.
|
Key Features & Benefits
|
Ruby EPDM Surface Precision-ground and buffed for controlled roughness and reliable sheet release. |
Recommended Applications
|
SHEET-FED UV OFFSET Commercial and packaging UV printing |
UV VARNISHING UV coating and overprint varnish units |
FOLDING CARTON Paperboard and high-coverage packaging jobs |
|
LABELS & SPECIALTY Sheet-fed label and specialty applications |
METAL DECORATING Selected metal-sheet printing applications |
PRODUCTION WORK Medium-long run jobs requiring stable gauge |
Technical Specifications
The following values are typical catalogue values for FORDIA UV-20. Final order specifications should be confirmed against the approved production standard and press requirements.
|
Parameter |
Typical specification / description |
|---|---|
|
Product model |
FORDIA UV-20 |
|
Quality grade / run level |
Medium-Long Run |
|
Primary application |
Sheet-fed UV offset printing |
|
Additional applications |
UV varnishing and selected metal-decorating work |
|
Printing-face compound |
UV-resistant EPDM |
|
Surface colour |
Ruby red |
|
Construction |
Multi-ply compressible blanket with reinforced fabric carcass |
|
Surface finish |
Precision ground and buffed; quick-release finish |
|
Standard thickness |
1.95 ± 0.02 mm |
|
Hardness |
Approx. 77 Shore A (typical) |
|
Surface roughness |
Ra approx. 0.9 µm; typical target range 0.8–1.0 µm |
|
Compressibility |
Approx. 0.20 mm at 200 N/cm² |
|
Elongation |
< 1.0% at 500 N/5 cm |
|
Tensile strength |
> 4,500 N/50 mm |
|
Pressure latitude |
Wide; designed for stable impression setting |
|
Ink / varnish compatibility |
UV-curable offset inks and UV varnishes |
|
Substrate suitability |
Paper, coated board and selected metal-decorating substrates |
|
Recommended cleaning |
EPDM/UV-compatible blanket wash |
|
Supply options |
Roll or cut-to-size sheet; punching/bar installation on request* |
* Supply formats and bar/punching options are subject to machine model, size and order confirmation.
Construction & Performance
|
Typical Multi-Layer Cross Section Functional layer arrangement shown for construction reference. |
Ruby EPDM Surface Texture Ground and buffed surface engineered for controlled transfer and release. |
Functional Layer Design
|
Functional zone |
Primary role |
Benefit in production |
|---|---|---|
|
Ruby EPDM face |
Transfers the image and contacts ink, varnish and substrate |
UV chemical compatibility, controlled release and clean print detail |
|
Reinforcement zone |
Distributes load and supports the printing face |
Stable surface geometry and uniform pressure across the sheet |
|
Compressible layer |
Absorbs pressure variation and minor impact |
Wide pressure latitude, reduced risk of over-impression and useful smash recovery |
|
Fabric carcass / base |
Provides tensile strength and mounting stability |
Low stretch, consistent gauge and reliable cylinder fit |
Performance Profile
|
UV compatibility EPDM face resists the aggressive chemistry commonly associated with UV inks, varnishes and approved wash-up products. |
Print reproduction Uniform surface finish supports fine dots, small text, clean line work and consistent solid density. |
|
Pressure control Compressible construction provides a broad working latitude and helps equalize minor variations in cylinder loading. |
Durability Medium-long run positioning provides a balanced service life for regular commercial and packaging production. |
|
Release & wash-up Ground quick-release surface helps reduce piling and supports efficient cleaning between jobs. |
Dimensional stability Reinforced fabric carcass and low elongation help maintain gauge and registration over production. |
Pressroom Use & Handling Guidance
|
BEFORE INSTALLATION
|
DURING PRODUCTION
|
CLEANING & STORAGE
|
Information Required for Quotation
|
PRESS Brand, model and year |
SIZE Length × width × thickness |
MOUNTING Plain, punched or barred |
INK SYSTEM UV ink / UV varnish / metal |
|
SUBSTRATE Paper, board or metal sheet |
QUANTITY Pieces or roll quantity |
PACKING Flat or rolled preference |
SPECIAL NEEDS OEM mark, bar type or tolerance |
Quality & Documentation Options
- Batch identification and product labels
- Dimensional inspection before shipment
- TDS / product catalogue support
- Custom cutting, punching and bar installation subject to confirmation
- Sample evaluation recommended before the first bulk order or a new press application
