High Adhesion LED UV Offset Printing Ink Plastic Film PVC PET Metallic Surface
| MOQ: | 1 |
| Price: | $2.90-3.70 |
LED UV Offset Printing Ink
,High Adhesion UV Offset Printing Ink
,LED UV Ink Plastic Film
Fast Curing: Instantly cures under LED UV light for high-speed printing and energy savings.
Excellent Adhesion & Durability: Ideal for demanding packaging and label applications.
High Color Strength & Stable Printing: Delivers brilliant gold and silver finishes with exceptional gloss and durability.
Low Odor & Non-Toxic: Compliant with stringent safety standards.
Engineered for Plastic Films & Metallic Surfaces: Perfect for printing on cardboard with superior results.

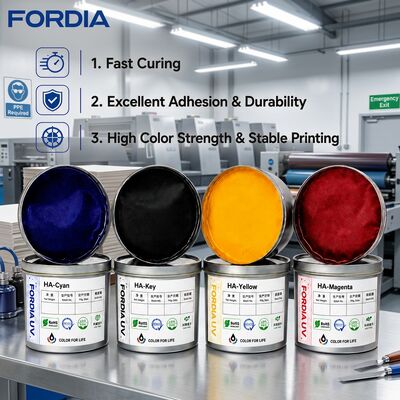

UV OFFSET INK
UV-HA HIGH ADHESION SERIES INK
High-adhesion UV offset ink for PET, PP, metallized stocks, aluminum foil paper and soft PVC film
| Document: TDS-UV-HA-EN | Revision: 01 | Issue date: 01 Aug 2026 |
| Product type: Energy-curable offset printing ink | Status: Typical technical data | Brand: FORDIA |
FORDIA UV-HA is a specialty UV offset ink series engineered for difficult non-absorbent substrates. Its balanced resin system promotes wetting, anchorage and film flexibility on properly treated PET, PP, metallized paper, aluminum foil-laminated paper and soft PVC film.
Recommended applications: Premium labels, plastic cards, packaging components, metallized paper products, foil-laminated paper and flexible display or promotional pieces. End-use suitability must be validated on the actual substrate.
Recommended substrates: PET, corona-treated PP, metallized paper, aluminum foil-laminated paper, selected soft PVC film
Recommended equipment: Sheet-fed or suitable web UV offset presses with sufficient UV dose
Available colors: Process Yellow, Process Magenta, Process Cyan, Process Black; white and spot colors by request
- Enhanced adhesion on properly treated low-absorbency and non-absorbent substrates.
- Flexible cured film with good resistance to cracking during normal converting.
- Good scratch, tape and rub resistance after complete cure and post-cure development.
- Stable ink-water balance and clean transfer on compatible UV offset equipment.
- Suitable for printing on PET, treated PP, metallized/foil paper and selected soft PVC film after testing.
| Data status: Values below are typical production values, not release specifications or contractual limits. |
| Property | Typical value | Test / condition |
|---|---|---|
| Appearance | High-adhesion paste ink | Visual |
| Fineness | ≤ 5 µm | Grind gauge |
| Tack | 11-15 | Inkometer, 32°C, 400 rpm, 1 min |
| Viscosity | 85-140 Pa·s | Cone/plate or equivalent, 25°C |
| Typical cure dose | 120-250 mJ/cm² | At the ink surface; verify on press |
| Adhesion target | ISO 2409 Class 0-1 | Cross-cut, 24 h after cure, approved stock |
| Shelf life | 9 months | Unopened original container, recommended storage |
| Process color | Typical solid density* | Lightfastness (Blue Wool)* |
|---|---|---|
| Yellow | 1.10-1.30 | 3-5 |
| Magenta | 1.30-1.50 | 4-5 |
| Cyan | 1.40-1.60 | 7-8 |
| Black | 1.55-1.80 | 7-8 |
*Density: coated stock, Status T measurement. Lightfastness is pigment/shade dependent and indicative only.
| Control point | Recommended starting guidance |
|---|---|
| Surface energy | Starting targets: PET ≥ 42 mN/m; PP ≥ 40 mN/m; PVC ≥ 38 mN/m. Verify immediately before printing. |
| Surface condition | Substrate must be clean, dry and free of oil, silicone, plasticizer bloom, dust and release agents. |
| Curing | Use sufficient dose for through-cure. Heavy coverage, dark shades and opaque white may require reduced speed. |
| Adhesion check | Evaluate cross-cut/tape adhesion after the printed film has cooled and again after 24 hours. |
| Pretreatment | Corona, flame treatment or an approved primer may be necessary when surface energy or coating compatibility is inadequate. |
| Series-specific note: Plastic films vary substantially by resin, additive package, topcoat, surface treatment and age. Production approval requires a trial on the exact substrate lot, followed by cure, adhesion, flexibility and finishing tests under intended service conditions. | |
- Condition ink to approximately 20-25°C before use and mix gently until uniform.
- Keep containers closed when not in use and protect ink from sunlight, UV lamps and strong white light.
- Do not mix with conventional oil-based ink or unapproved additives. Use only FORDIA-recommended reducers or auxiliaries.
- Keep rollers, blankets, plates and ink ducts clean. Residual wash or incompatible ink can impair cure and adhesion.
- Approve color, cure, adhesion, rub resistance and finishing performance on the actual press and substrate before a production run.
Use a wash approved for UV-curable offset inks and compatible with the press rollers, blankets and plate system. Follow the press manufacturer's procedure. Prevent wash and ink residues from entering drains or surface water.
- Standard packing: 1 kg vacuum can; other pack sizes may be available by agreement.
- Store in the unopened original container at 5-25°C in a cool, dry, well-ventilated area.
- Protect from heat, freezing, sunlight and all UV radiation. Rotate stock on a first-in, first-out basis.
- Shelf life applies only under the stated storage conditions. Resealed or contaminated ink should be evaluated before reuse.
Guangzhou Fordia New Materials Technology Co., Ltd. specializes in high-performance printing consumables, offering offset, UV printing solutions and supplying offset printing machine parts. With a focus on quality and cost-effectiveness, the company serves global printing houses, providing stable products and customized solutions. It exports to Southeast Asia, the Middle East, and South America, emphasizing long-term partnerships and flexible MOQ.
