High Concentration UV Offset Printing Ink Fast Dry For Coated Paper Paperboard
| MOQ: | 1 |
| Price: | $2.90-3.80 |
High Concentration UV Offset Printing Ink
,UV Offset Printing Ink Fast Dry
,Paperboard UV Offset Printing Ink
CMYK UV HS offset ink delivers vibrant weatherresistant prints on sheetfed cardboard film and PET substrates.
Formulated with soybased chemistry for low odor high concentration and ecofriendly performance.
UVproof formulation ensures longlasting color fidelity and resistance to fading under sunlight exposure.
Engineered for highspeed sheetfed offset presses with excellent transfer gloss and rub resistance.
Compatible with diverse substrates including coated/uncoated cardboard synthetic films and PET-ideal for premium packaging.
FORDIA UV-HS is a high color concentration UV offset ink series developed for premium paper and paperboard printing. Its strong pigmentation enables target density to be reached with a thinner ink film, supporting sharp dots, clean overprints and efficient ink consumption on suitable UV offset presses.
Recommended applications: Premium cartons, commercial print, labels, brochures, book covers and other high-quality sheet-fed UV offset work on coated paper or paperboard. Non-absorbent stocks require prior compatibility testing.
Recommended substrates: Coated paper, art paper, coated board, metallized paper with approved primer (trial required)
Recommended equipment: Sheet-fed UV offset presses; conventional mercury UV or compatible UV curing configuration

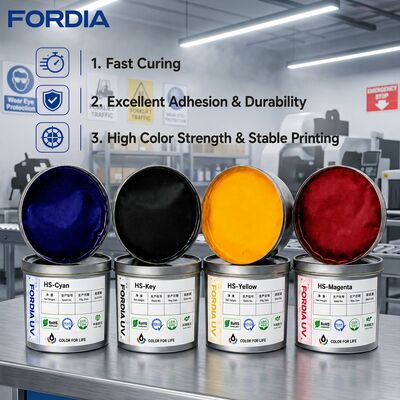

Available colors: Process Yellow, Process Magenta, Process Cyan, Process Black; spot colors available on request
- High color strength and strong print density at a controlled ink-film thickness.
- Bright, clean process shades with good transparency and overprint definition.
- Stable ink-water balance, low misting and consistent transfer at production speeds.
- Fast UV cure with good rub resistance after complete curing.
- Suitable for coated paper, paperboard and other approved absorbent or semi-absorbent substrates.
|
Data status: Values below are typical production values, not release specifications or contractual limits. |
| Property | Typical value | Test / condition |
|---|---|---|
| Appearance | High-viscosity paste ink | Visual |
| Fineness | ≤ 5 µm | Grind gauge |
| Tack | 12-16 | Inkometer, 32°C, 400 rpm, 1 min |
| Viscosity | 90-140 Pa·s | Cone/plate or equivalent, 25°C |
| Typical cure dose | 100-200 mJ/cm² | At the ink surface; verify on press |
| Rub resistance | Good to excellent after full cure | Dry rub, substrate dependent |
| Shelf life | 12 months | Unopened original container, recommended storage |
| Process color | Typical solid density* | Lightfastness (Blue Wool)* |
|---|---|---|
| Yellow | 1.20-1.35 | 3-5 |
| Magenta | 1.40-1.55 | 4-5 |
| Cyan | 1.50-1.65 | 7-8 |
| Black | 1.65-1.85 | 7-8 |
*Density: coated stock, Status T measurement. Lightfastness is pigment/shade dependent and indicative only.
| Control point | Recommended starting guidance |
|---|---|
| Ink film | Use the minimum film needed to reach target density; avoid excessive film weight. |
| Dampening | Run the lowest stable water setting. Keep fountain solution clean and within press-maker specifications. |
| Curing | Confirm cure with a rub, scratch and tape test. Increase dose or reduce speed when heavy coverage is used. |
| Pile/finishing | Allow the printed stack to cool before cutting, folding, laminating or foil stamping. |
|
Series-specific note: Density and lightfastness values are shade, substrate and measurement-condition dependent. Where high lightfastness is critical, specify the requirement before color matching. |
|
- Condition ink to approximately 20-25°C before use and mix gently until uniform.
- Keep containers closed when not in use and protect ink from sunlight, UV lamps and strong white light.
- Do not mix with conventional oil-based ink or unapproved additives. Use only FORDIA-recommended reducers or auxiliaries.
- Keep rollers, blankets, plates and ink ducts clean. Residual wash or incompatible ink can impair cure and adhesion.
- Approve color, cure, adhesion, rub resistance and finishing performance on the actual press and substrate before a production run.
Use a wash approved for UV-curable offset inks and compatible with the press rollers, blankets and plate system. Follow the press manufacturer's procedure. Prevent wash and ink residues from entering drains or surface water.
- Standard packing: 1 kg vacuum can; other pack sizes may be available by agreement.
- Store in the unopened original container at 5-25°C in a cool, dry, well-ventilated area.
- Protect from heat, freezing, sunlight and all UV radiation. Rotate stock on a first-in, first-out basis.
- Shelf life applies only under the stated storage conditions. Resealed or contaminated ink should be evaluated before reuse.
Guangzhou Fordia New Materials Technology Co., Ltd. specializes in high-performance printing consumables, offering offset, UV printing solutions and supplying offset printing machine parts. With a focus on quality and cost-effectiveness, the company serves global printing houses, providing stable products and customized solutions. It exports to Southeast Asia, the Middle East, and South America, emphasizing long-term partnerships and flexible MOQ.
